Guiguan Group: Four Companies, One Building Package
Structural steel, prefabricated building systems, precast and modular products, and installation in Southeast Asia. Each company owns its product. Together they deliver the frame, floors and envelope of one building.
Parent group and four operating companies
Guiguan Steel, the brand on this site, is the trading name of Guangdong Guiguan Construction Group Co., Ltd.
| Company | Role | What it does | Based in |
|---|---|---|---|
| Guiguan Group | Parent group | Strategy, finance, R&D direction and shared supply chain | Dongguan, Guangdong |
| Guangdong Guiguan Construction Group Co., Ltd. | Structural steel (Guiguan Steel) | Detailing, fabrication, coating, delivery, installation; steel structure, curtain wall and fit-out contracting | Dongguan, 8 bases |
| Guangdong Guiguan Green Building Technology Co., Ltd. | Prefab systems | PBS precast shell system, truss floor deck, fibre-reinforced concrete board, BIM + MES | Guangdong |
| Guangdong Jiwei Space Digital Technology Co., Ltd. | Precast and modular | PC components, ALC panels, shell formwork, modular and integrated buildings, digital platforms | Guangdong |
| PT Pemasangan Baja Struktur Xianghe | Southeast Asia installation | Detailing support, logistics and customs, local steel erection, MEP coordination | Indonesia |
The group delivered 3,000,000 m²+ of steel structures and 2,000,000 m²+ of green and prefabricated buildings.
Guangdong Guiguan Construction Group
The steel company of the group and the contracting entity for most export orders. It runs the Tekla detailing team, the 8 fabrication bases and the site installation teams in China. Capacity is up to 300,000 t/yr group-wide.

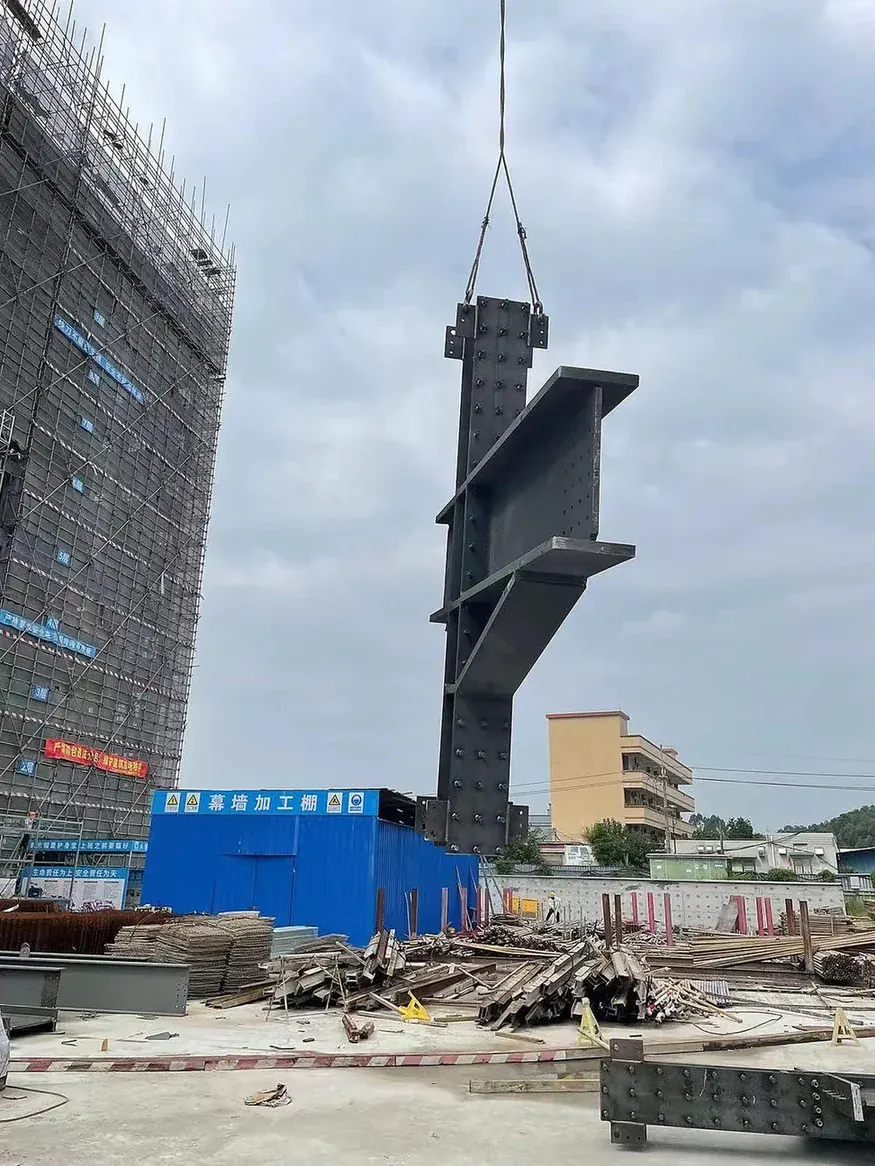

Typical scope: box columns, plate girders, trusses, multi-cavity nodes and secondary steel, built to AISC 360, EN 1993 or AS 4100 drawings. References include the CGN Headquarters and JD Asia No.1.
- Tekla detailing and connection design
- Fabrication, 100% UT on CJP welds, coating
- Steel structure, curtain wall and fit-out contracting licences in China
- FOB, CFR, CIF and erection supervision
Guangdong Guiguan Green Building Technology

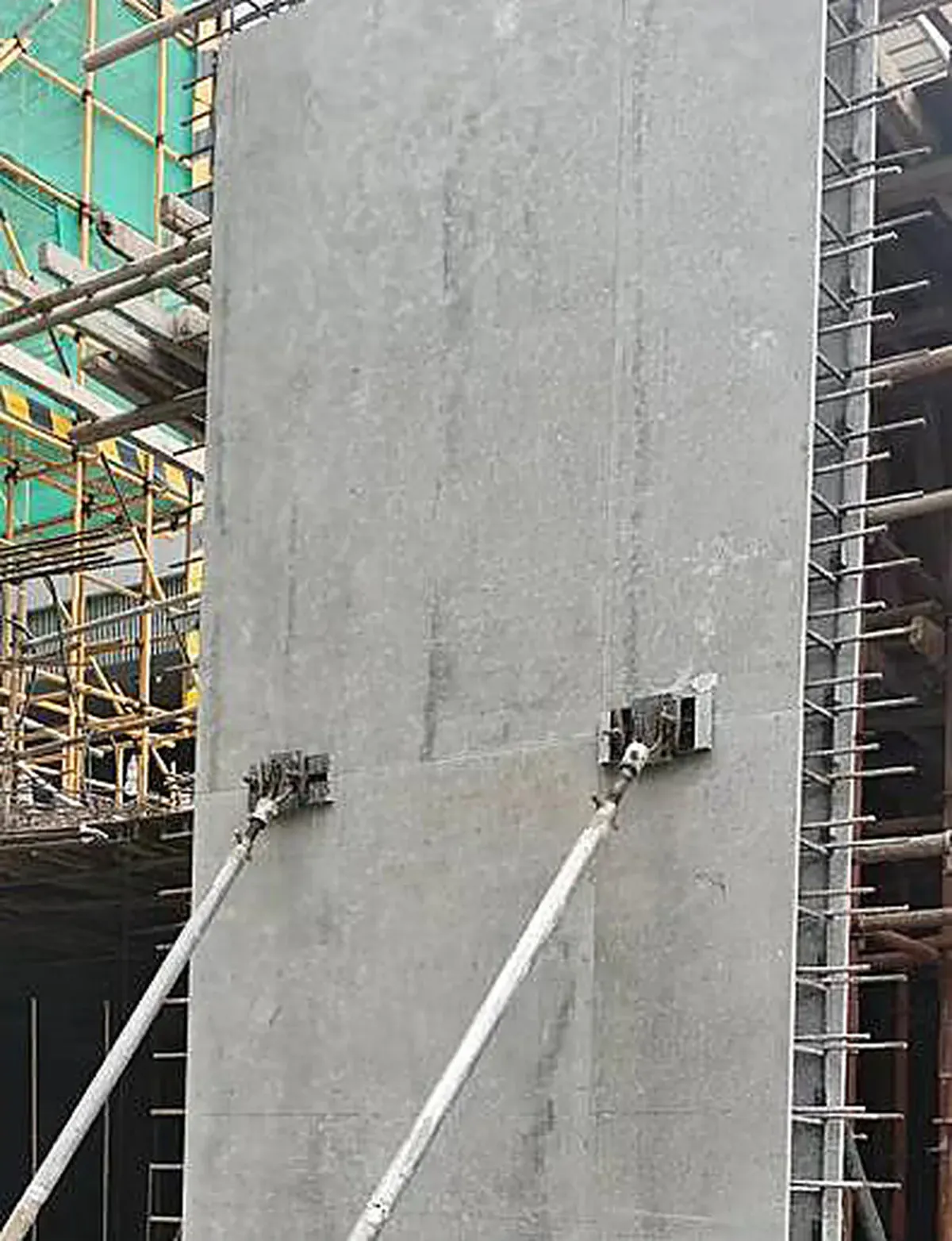

Develops and produces the group’s prefabricated systems. Its own fibre-reinforced concrete board is the base of two products: the PBS precast shell for columns, beams, slabs and shear walls of RC frames, and the truss floor deck used on steel frames.

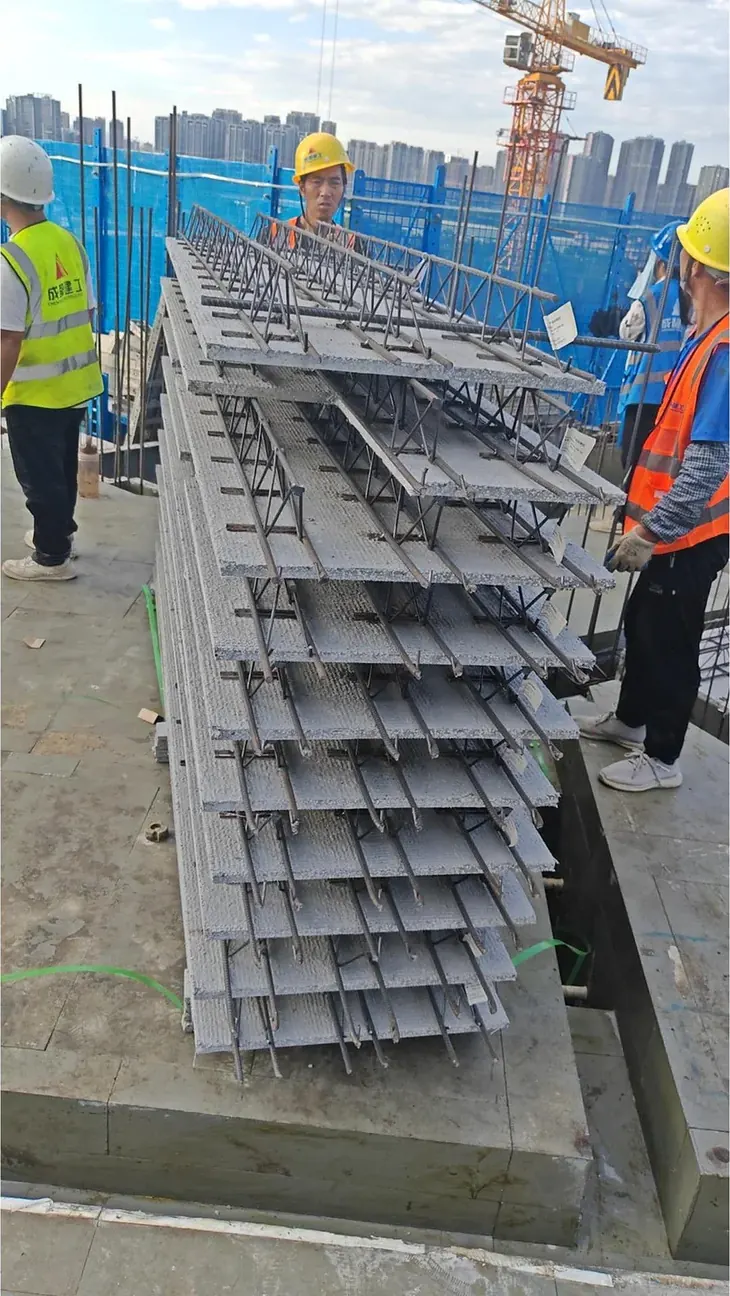

The floor deck uses 1.2–2.0 mm base plates, 70–100 mm truss heights and 1220 × 2440 mm panels at about 28 kg/m², with Class A fire rating. Production runs on BIM and MES so panel IDs match the model.
- PBS precast shell system: design atlas and technical specification
- Truss floor deck: provincial construction method and product standard
- Fibre-reinforced concrete board production
- 2,000,000 m²+ green and prefab buildings served
Guangdong Jiwei Space Digital Technology
Supplies the concrete and modular side of a project: precast concrete (PC) components such as stairs and wall panels, ALC (autoclaved lightweight concrete) panels for walls and partitions, shell formwork, and modular or integrated buildings for site camps, dormitories and fast-track facilities.
It also develops the group’s digital platforms for design, production and site management.
- PC stairs, slabs and wall panels
- ALC wall and partition panels
- Modular and integrated buildings
- Digital design and production platforms
PT Pemasangan Baja Struktur Xianghe
The group’s Indonesian company. It gives Southeast Asian clients a local contracting party for steel erection, with crews, site management and equipment coordination on the ground, backed by fabrication in South China about 6 days away by sea.
Outside Southeast Asia we provide erection supervisors rather than crews. Civil works such as foundations remain with the local contractor.
- Local installation crews and site management
- Cross-border logistics and customs clearance
- Detailing and fabrication coordination with China bases
- Serves Indonesia, Malaysia, the Philippines and the region
How the companies combine on a multi-storey logistics building
Example: a 4-storey ramp-up warehouse in Southeast Asia, around 2,500 t of steel and 40,000 m² of floor.
| Building element | Company | Product / service |
|---|---|---|
| Steel frame: columns, beams, trusses | Guiguan Construction Group | Detailing, fabrication, coating, shipping |
| Floors | Guiguan Green Building Technology | Truss floor deck, no props, Class A fire |
| RC cores or podium | Guiguan Green Building Technology | PBS precast shell for columns, beams and shear walls |
| Walls, stairs and partitions | Jiwei Space Digital Technology | ALC panels, PC stairs and wall panels |
| Site offices and staff housing | Jiwei Space Digital Technology | Modular buildings |
| Erection in Southeast Asia | PT Xianghe | Crews, equipment coordination, site management |
The steel company leads. It holds the contract, runs the master model and schedules every supply. Floor deck panels are numbered from the same Tekla model as the beams, so deck loads arrive bay by bay as the frame goes up.
- One contract and one project engineer
- One model: steel, deck and panels coordinated before production
- One shipping plan: frame, deck and panels sequenced by area
- One QC dossier in English
Comparable combined packages in China include the JD Asia No.1 logistics hub and multi-storey projects using our warehouse systems.
What the group structure changes for you
Buying a building from four suppliers in two countries usually means four contracts, four schedules and gaps at every interface. Here, the gaps are inside one group.
Fewer interfaces
Steel-to-deck, deck-to-shell and frame-to-panel details are designed by companies that share a model. The edge trim on a deck panel is detailed in the same Tekla model as the beam it sits on.
One schedule
Fabrication of steel, deck and panels is booked against one erection sequence. Shipments arrive in the order the site needs them, not in the order each factory finishes.
One accountable party
The steel company holds the contract and answers for the package. If a deck panel does not fit a beam, there is no argument about whose drawing was wrong.
Local presence in Southeast Asia
In Indonesia and the region, PT Xianghe gives you a local company with crews on site, while fabrication stays in South China at China cost.
Group questions
See manufacturing bases and certifications.
Which company do I sign the contract with?
For steel and combined packages, the contracting party is Guangdong Guiguan Construction Group Co., Ltd. Installation contracts in Indonesia can be signed locally with PT Pemasangan Baja Struktur Xianghe.
Can I buy floor deck or PBS without steel?
Yes. Each company supplies its products on their own. Combining them with the steel package mainly saves coordination and shipping cost.
Does PT Xianghe work outside Indonesia?
Yes. Crews are deployed across Southeast Asia, including Malaysia and the Philippines, subject to local work permits.
Are the companies under one quality system?
Each company runs its own production control, and the steel company coordinates the ITP and the shipping dossier for combined packages. Guiguan Construction Group holds ISO 9001, 14001 and 45001.
Send your drawings. Get a 24-hour BOM and FOB price.
DWG, IFC, Tekla or PDF. Engineering review by our Tekla team, from 50 t or 2,000 m².
