Shenzhen · 700 t truss
Longgang Central Hospital: 27 m span atrium truss, 700 t, raised by ultra-high synchronous hydraulic lifting.
Spans 20–90 mHydraulic synchronous liftingFull shop trial assembly
Prefabricated Steel Bridges, Skywalks & Highway Steel Girders
Pedestrian footbridges, building link bridges, skywalks and welded steel box girders with spans from 20 to 90 m. Trial-assembled in the shop, fitted with lifting lugs, and delivered for hydraulic lifting or crane erection.
90 mShop trial assembly length
700 tAtrium truss lifted, Longgang hospital
100%UT on girder CJP welds
24 m / 60 tMax. single shipped piece
01Who this is for
Steel bridges for contractors, developers and municipal clients
Steel bridges are short in tonnage but long in risk. Most link bridges go up in a single lift over a live street or between two finished towers, and there is no room for a hole that does not line up.
We fabricate the steel for skywalks between buildings, pedestrian footbridges over roads, atrium bridges, transit-station covers and road girders. Our scope runs from Tekla detailing through trial assembly, coating and shipping, with lifting lugs, jacking points and temporary bracing included.
- Storey-deep truss bridges with floor deck and roof framing
- Welded box girders with internal stiffeners and diaphragms
- Lifting lugs and strand-jack anchor points designed in
- Curved and sloped walkways, stairs and canopies

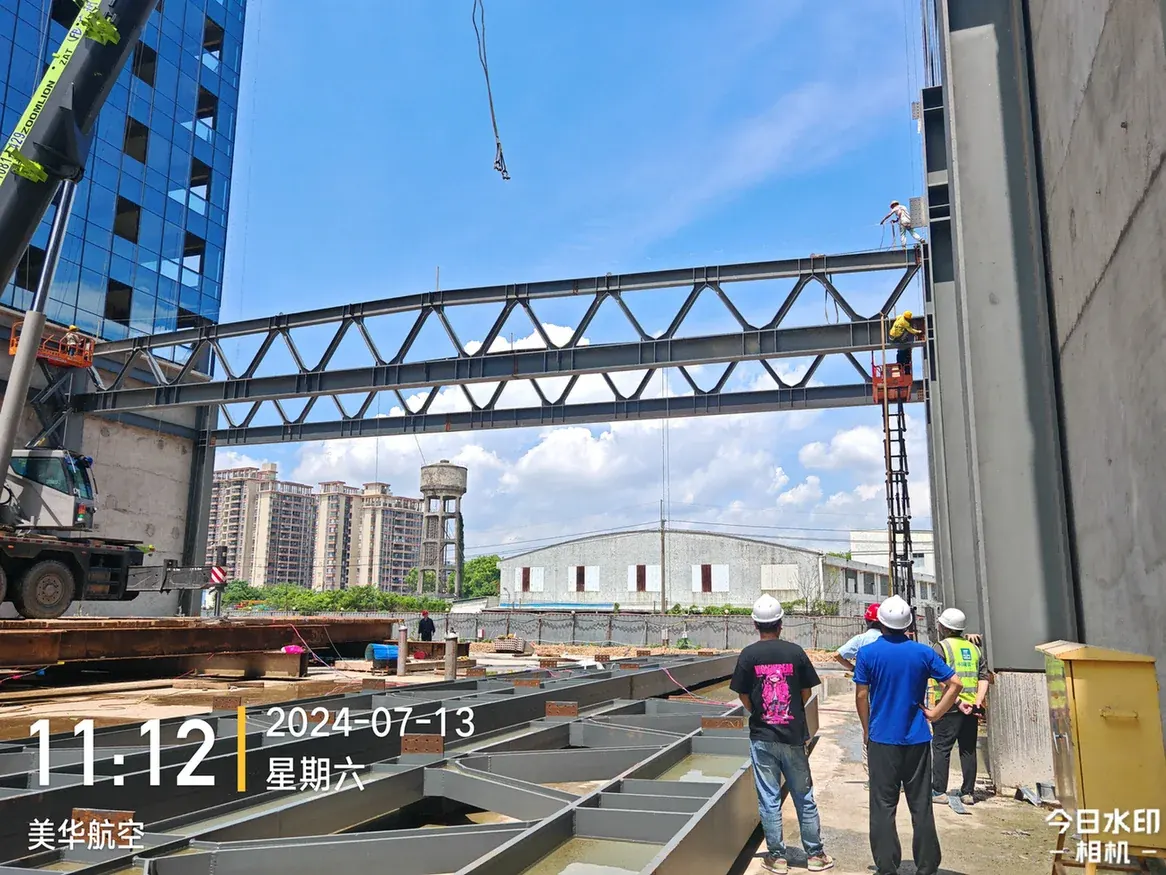

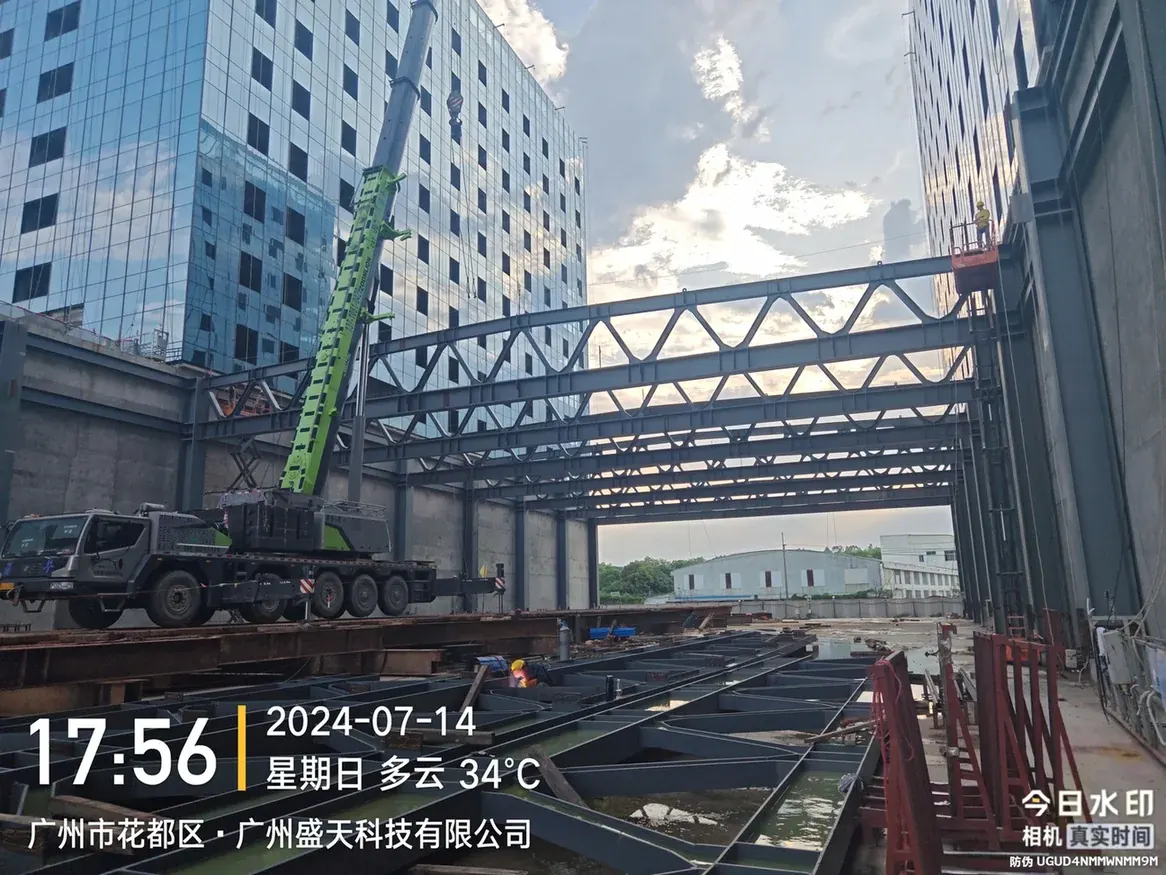

Steel skybridge truss before lifting
02Structural breakdown
Structural breakdown of a steel bridge or skywalk
Each member family links to its product page with section ranges and processing limits.
Welded girders for footbridges and road bridges, cambered to the design profile.
Heavy nodes at supports and lifting points, with machined bearing surfaces.
03Steel consumption & cost
Steel bridge cost: three tiers
Bridges are priced per tonne; steel per metre of deck depends on span, width and enclosure.
| Tier | Typical scope | Span / height | Steel consumption | Indicative FOB China | Loading |
|---|---|---|---|---|---|
| Tier 1: open footbridge | Box girder or truss, 3–4 m wide deck | 20–35 m | 250–400 kg per m | USD 1,400–1,600/t | Container segments to 11.8 m |
| Tier 2: enclosed skywalk | Storey-deep truss, floor deck, roof framing | 30–60 m | 400–600 kg per m | USD 1,500–1,750/t | Break-bulk segments |
| Tier 3: long-span link / girder | Lifted truss bridge or road girder | 60–90 m | Calculated per drawings | USD 1,550–1,800/t | Break-bulk, segments to 24 m |
Indicative ranges for budgeting, based on recent South China project data. Final tonnage and price are confirmed per quotation from your drawings, loads and coating specification.
Example: a 40 m enclosed skywalk at about 500 kg per metre needs roughly 20 t of steel; with lifting steel and stairs, a typical package is 25–35 t. Small bridges can join a larger shipment to meet the 50 t minimum. See NDT and shipping.
{04}Bridge types
Spans, sections and erection methods
| Bridge type | Typical span | Section | Erection method |
|---|---|---|---|
| Pedestrian footbridge | 20–45 m | Box girder or Warren truss | Single mobile crane lift |
| Building link bridge / skywalk | 20–90 m | Storey-deep truss with floor deck | Hydraulic synchronous lift or tandem crane |
| Atrium and roof truss bridge | 20–40 m | Heavy H or box truss | Hydraulic lifting from ground assembly |
| Road and rail steel girders | 30–60 m | Welded box or plate girder | Crane, launching or segmental erection |

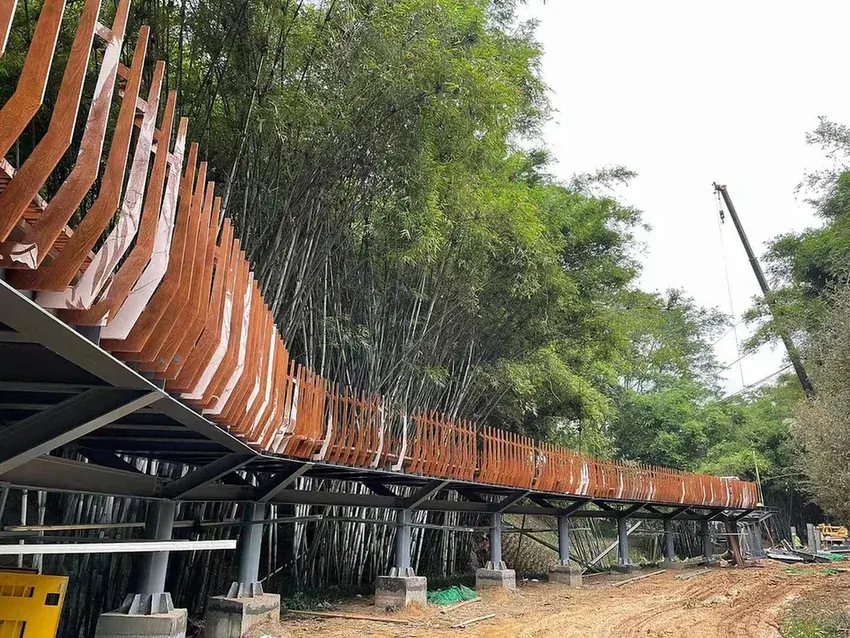

| Landscape walkways and canopies | 6–30 m | Tube or H frames | Crane, modular segments |
Link bridges between towers are usually storey-deep trusses assembled at ground level, then raised in one piece by hydraulic strand jacks. That makes two things critical: the truss must be geometrically exact at the bearing points, and the lifting lugs and temporary members must be designed into the shop drawings.
We trial-assemble bridge trusses up to 90 m in the shop, survey camber and bearing positions, and fabricate lifting lugs and temporary bracing with the permanent steel. For girder bridges, we fabricate welded box sections with full-penetration flange welds tested by 100% UT.
Vibration and corrosion matter for footbridges. We follow the designer’s frequency targets and recommend C4 systems or galvanizing for exposed bridges; see coating options.
05Reference projects
Bridges, atrium trusses and transit covers
Heavy lifts and exposed structures delivered with China State Construction divisions in Shenzhen.

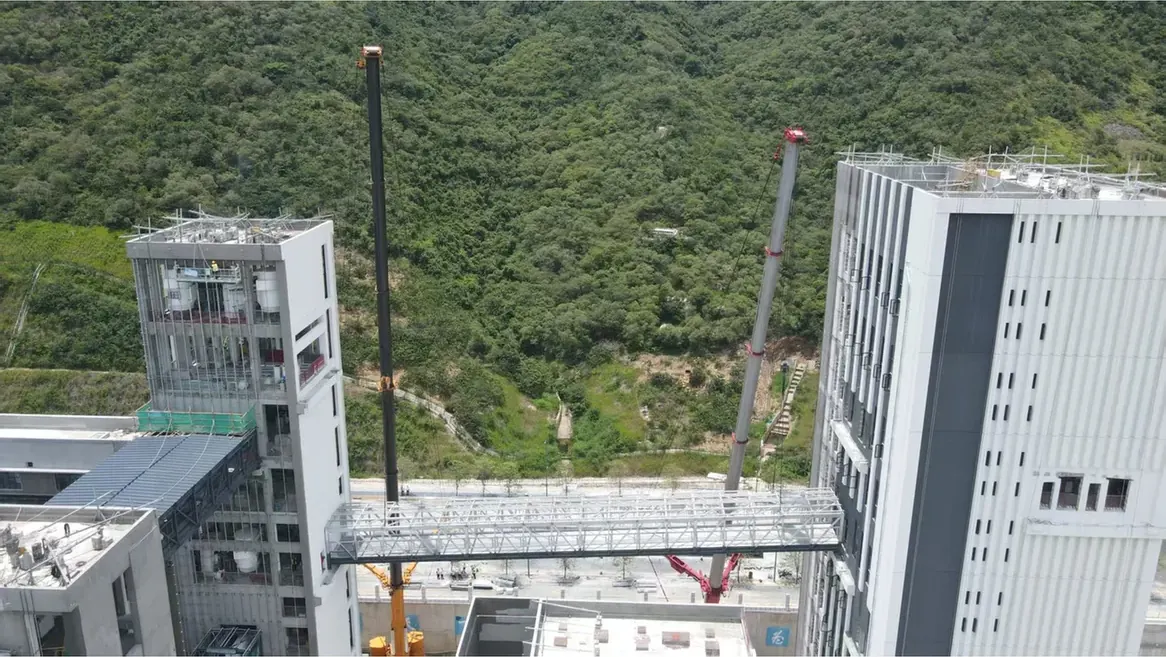

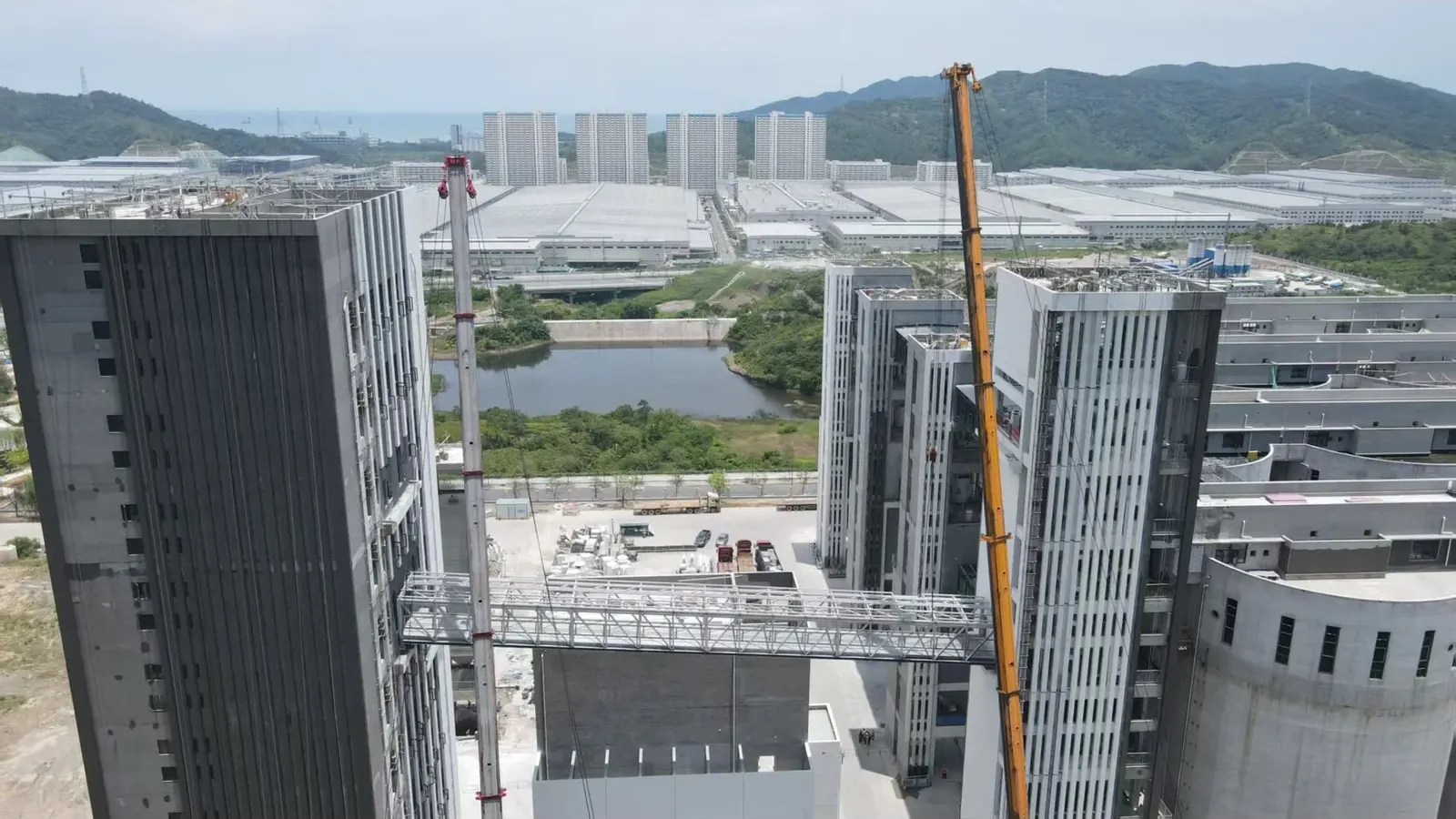

Skybridge · one-piece lift
Storey-deep link truss assembled at ground level, surveyed, then lifted into place between two towers.
Shenzhen · Q355B

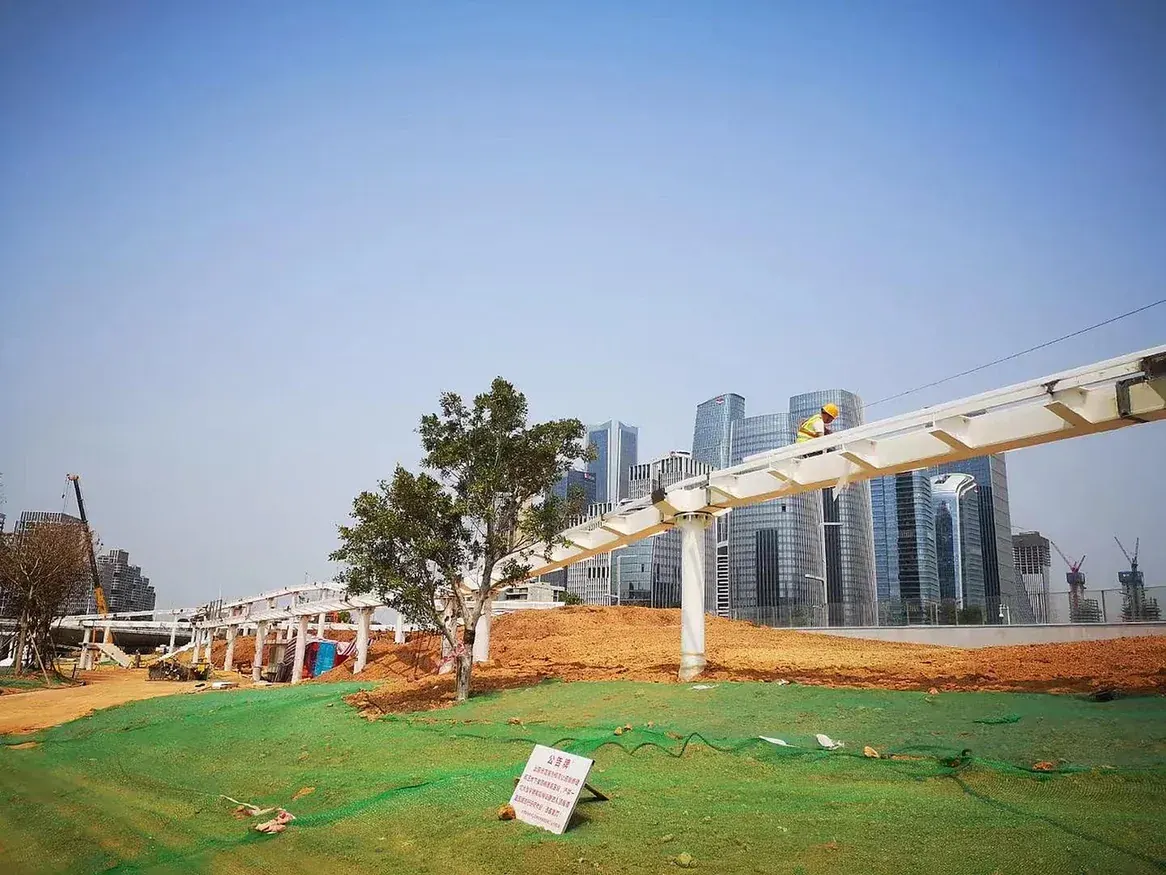

Antuoshan TOD cover: skylights, lane canopies and entrance canopies in Q355B box tubes and H-sections.
43 patents: 5 invention, 32 utility, 6 design
ISO 9001 / 14001 / 45001
100% UT on CJP welds
MTC to EN 10204 3.1
National High-Tech Enterprise
06Delivery method
Four steps that make a one-piece lift predictable
-
01
Tekla load model and shop drawings
Your design is modelled in Tekla Structures, connections are checked to AISC 360, EN 1993 or AS 4100, and you approve shop drawings before any plate is cut.
-
02
Shop trial assembly and hole check
Frames, trusses and splices are laid out in the yard, surveyed and match-marked so bolt holes line up on site.
-
03
Piece-mark stamping
Every member carries a steel-stamped piece mark that matches the erection drawings and the packing list.
-
04
Protected packing and loading
Members are bundled on steel saddles with timber separators, loaded to a container plan or break-bulk stowage plan, and shipped FOB Shenzhen or Guangzhou.

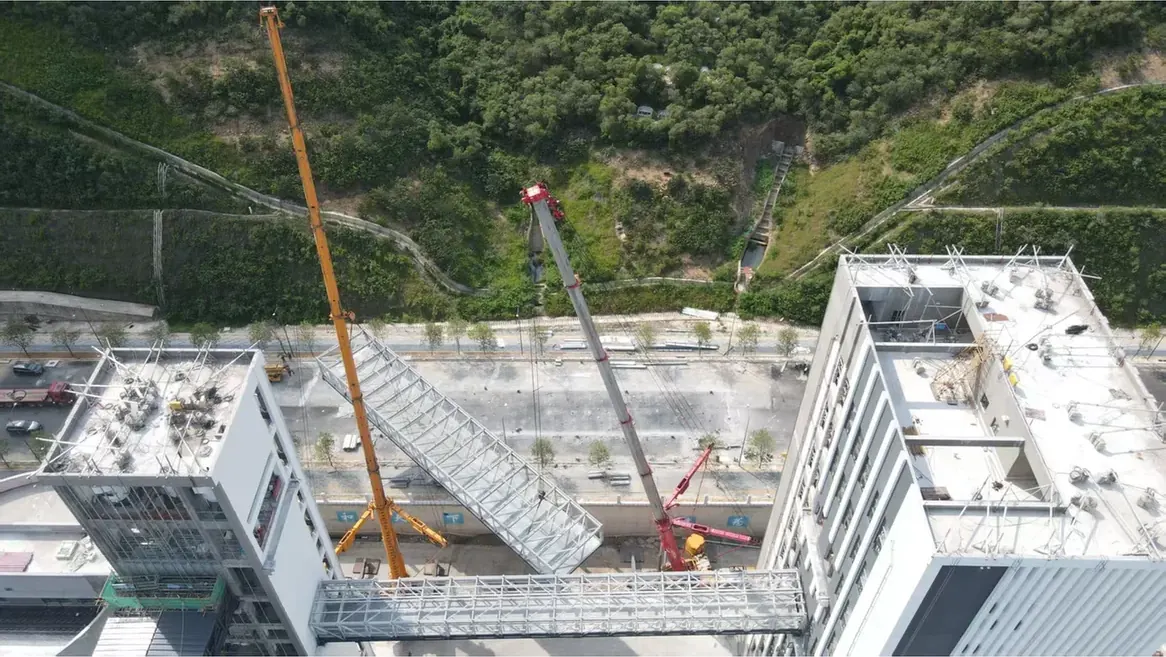

Hydraulic lifting of a steel link bridge
07FAQ
What buyers ask before ordering
Related: commercial and high-rise steel and long-span hangars.
What to send for a 24h quote
- General arrangement with span, deck width, enclosure and support positions
- Bearing details and the planned erection method (crane, strand jack, launching)
- Vibration and deflection criteria from the bridge designer
- Design code, wind, seismic and snow data for the site
- Coating or galvanizing specification and fire rating, if any
- Destination port and the date you need the steel on site
What is the longest bridge span you can supply?
We trial-assemble bridge trusses up to 90 m in the shop. Longer spans are supplied in segments with site splices designed with your engineer.
Do you design the lifting method?
We detail lifting lugs, jacking points and temporary bracing to the erection engineer’s method, and check lifted geometry in the Tekla model.
Can you supply curved or sloped bridges?
Yes. We fabricate curved box girders, sloped walkways and spiral stairs from CNC-cut plate and rolled tube.
Which codes do you work to?
Connections and members are checked to AISC 360, EN 1993 or AS 4100. Bridge-specific requirements such as fatigue details follow your designer’s specification.
How are bridges shipped?
In segments of up to 11.8 m for 40HQ containers, or up to 24 m and 60 t per piece by break-bulk, with splices fitted during trial assembly.
Is there a minimum order for a single footbridge?
Our minimum is 50 t. A single small footbridge can be combined with other steel to the same port, or quoted with stairs, canopies and lifting steel.
Send your bridge drawings. Get a 24-hour BOM and FOB price.
Span, width, enclosure and erection method are enough to start.
